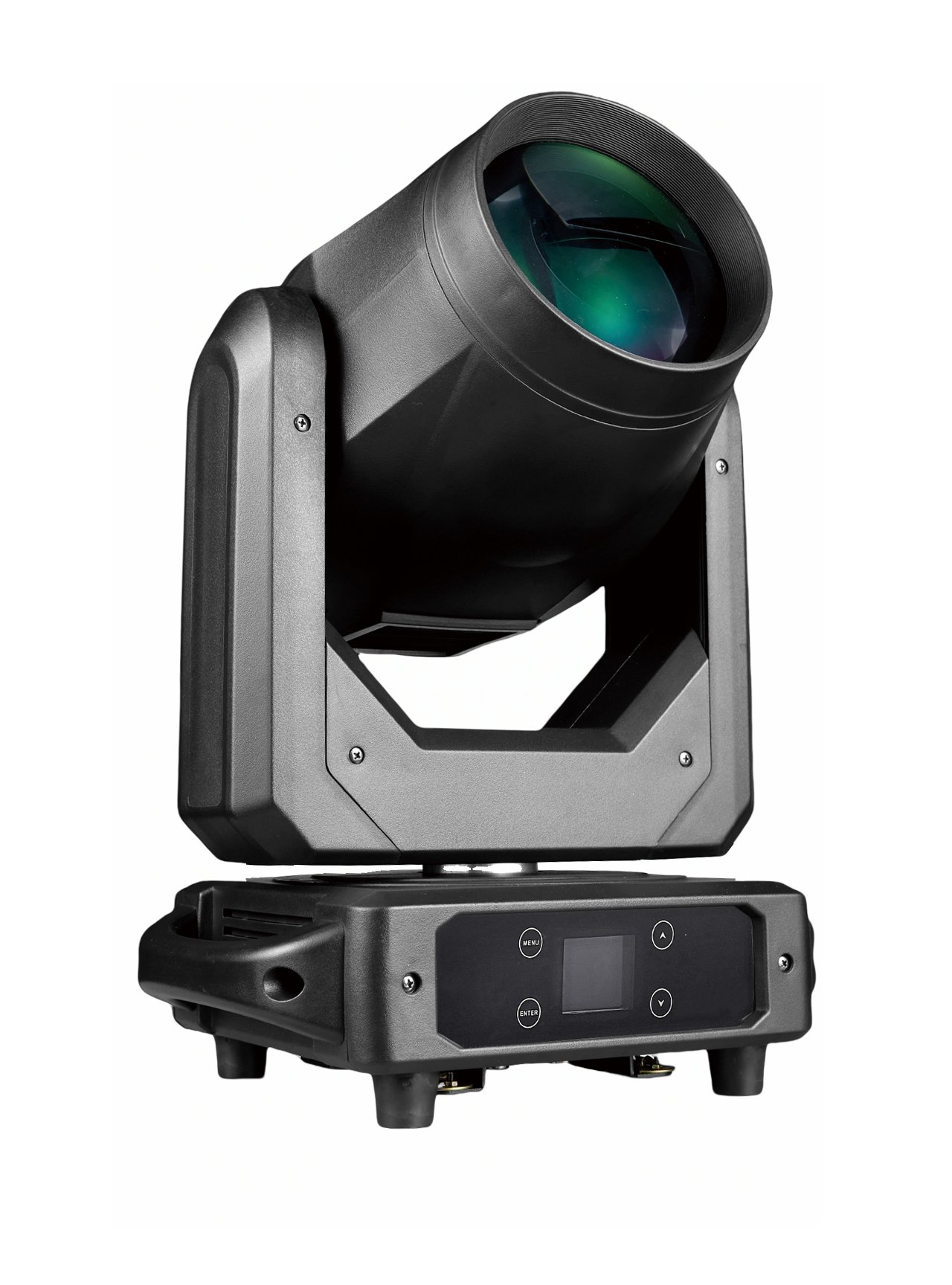

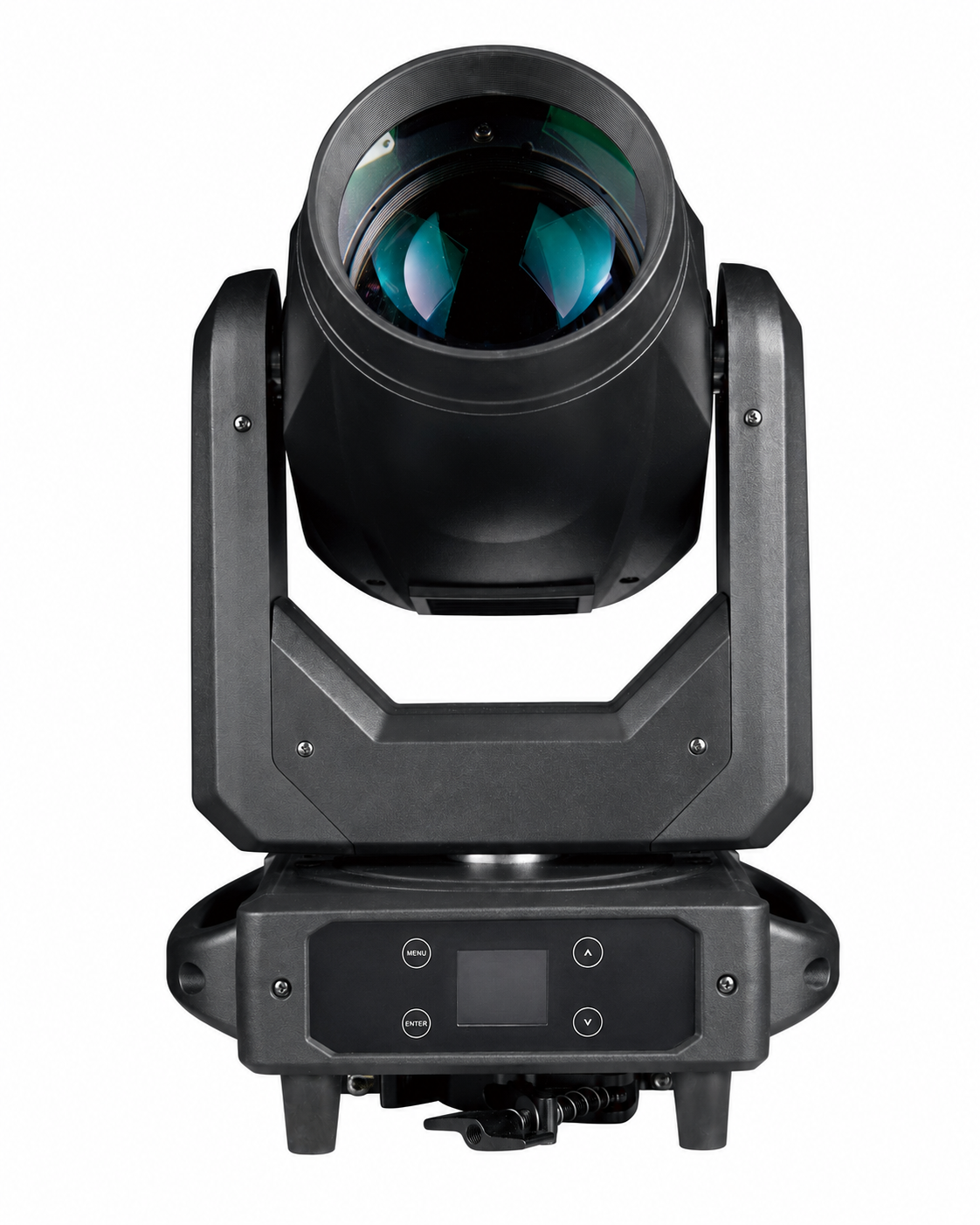

Moving Head
AXIS 300
300 W moving head beam
A 2° beam with electric focus, 14 colours and 17 fixed gobos. Rotating 8- and 24-facet prisms and frost provide further beam effects.
- 14 colours + open and 17 fixed gobos + open
- Rotating 8- and 24-facet prisms, plus frost
- 540° pan / 270° tilt with 16-bit control
- DMX512 / RDM with 16- and 20-channel modes
AXIS 300 / TECHNICAL DATA
Technical specifications
Light source & optics
- Lamp
- Philips 300 W long-life lamp
- Colour temperature
- 7500 K
- Beam angle
- 2°
- Front lens
- 145 mm
- Focus
- Electric focusing system
Colour & effects
- Colour wheel
- 14 colours + open
- Fixed gobo wheel
- 17 gobos + open
- Prisms
- Rotating 8-facet and 24-facet prisms
- Frost
- Frost effect
- Dimmer
- 0–100% dimming
- Strobe
- Variable-speed strobe effects
Movement
- Pan
- 540°
- Tilt
- 270°
- Resolution
- 16-bit movement control
- Position correction
- Automatic pan and tilt correction
Control & connections
- Protocols
- DMX512 / RDM
- DMX channel modes
- 16 / 20
- Display
- LCD
- Signal connections
- 3-pin XLR input/output
Electrical
- Power supply
- 100–260 V AC, 50/60 Hz
- Lamp power
- 300 W
- Fixture power rating
- 400 W
Physical & protection
- IP rating
- IP20
- Application
- Indoor stages and events
- Dimensions
- 335 × 401 × 507 mm
Photometric reference
Illuminance and beam diameter as stated in the specification.
| Distance | Illuminance | Beam diameter |
|---|---|---|
| 5 m | 1,936,800 lux | 0.17 m |
| 10 m | 484,200 lux | 0.33 m |
| 15 m | 215,200 lux | 0.52 m |
| 20 m | 121,000 lux | 0.69 m |
Product questions
What should I include in a quotation request?
Send the required quantity, destination, project date, control requirements and packing options for AXIS 300.
Where can I find the technical data?
The specifications below list the published electrical, optical, control and installation details. Contact the team for configuration-specific requirements.
AXIS 300 pricing and availability
Send quantity, destination, delivery date and configuration requirements.
