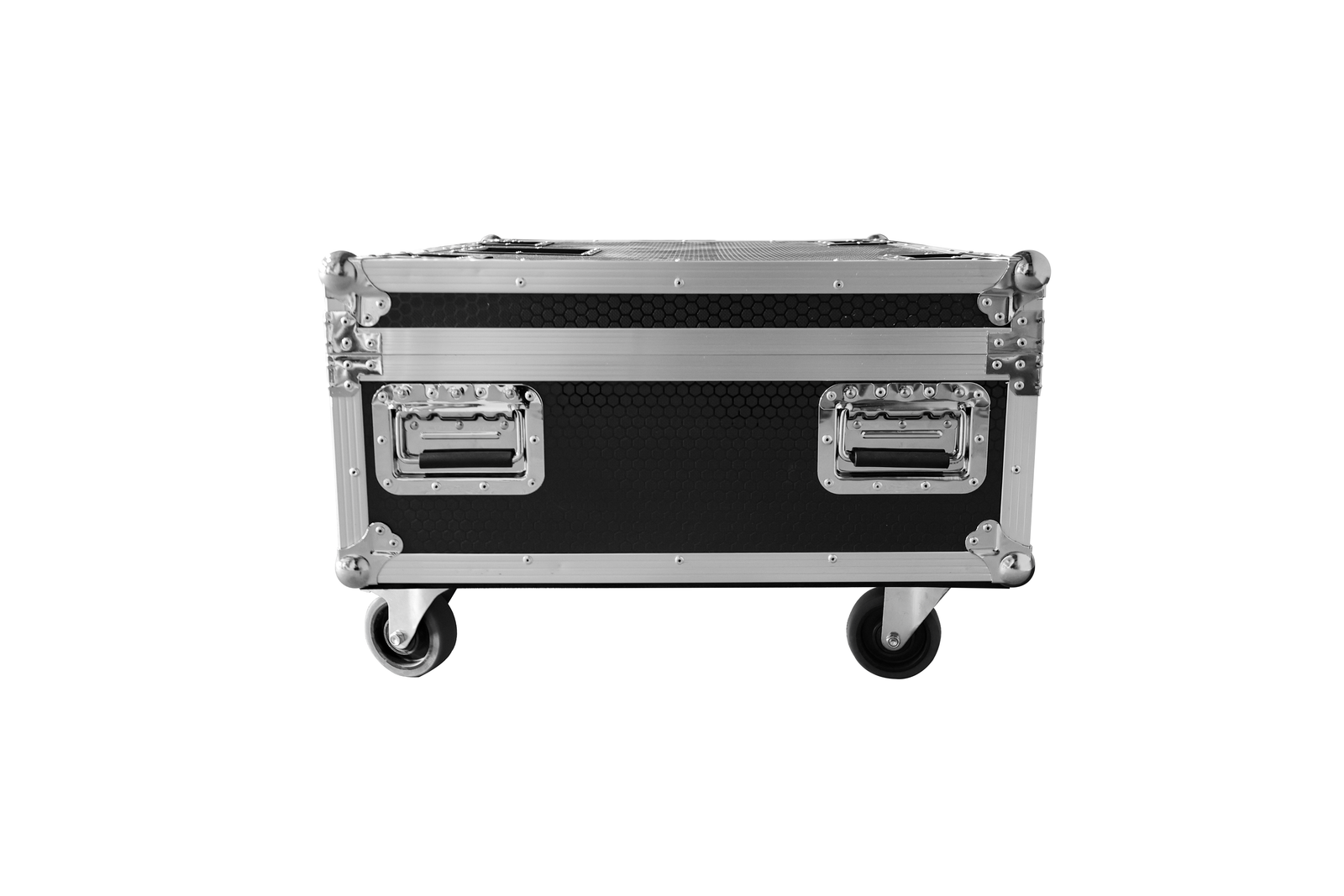

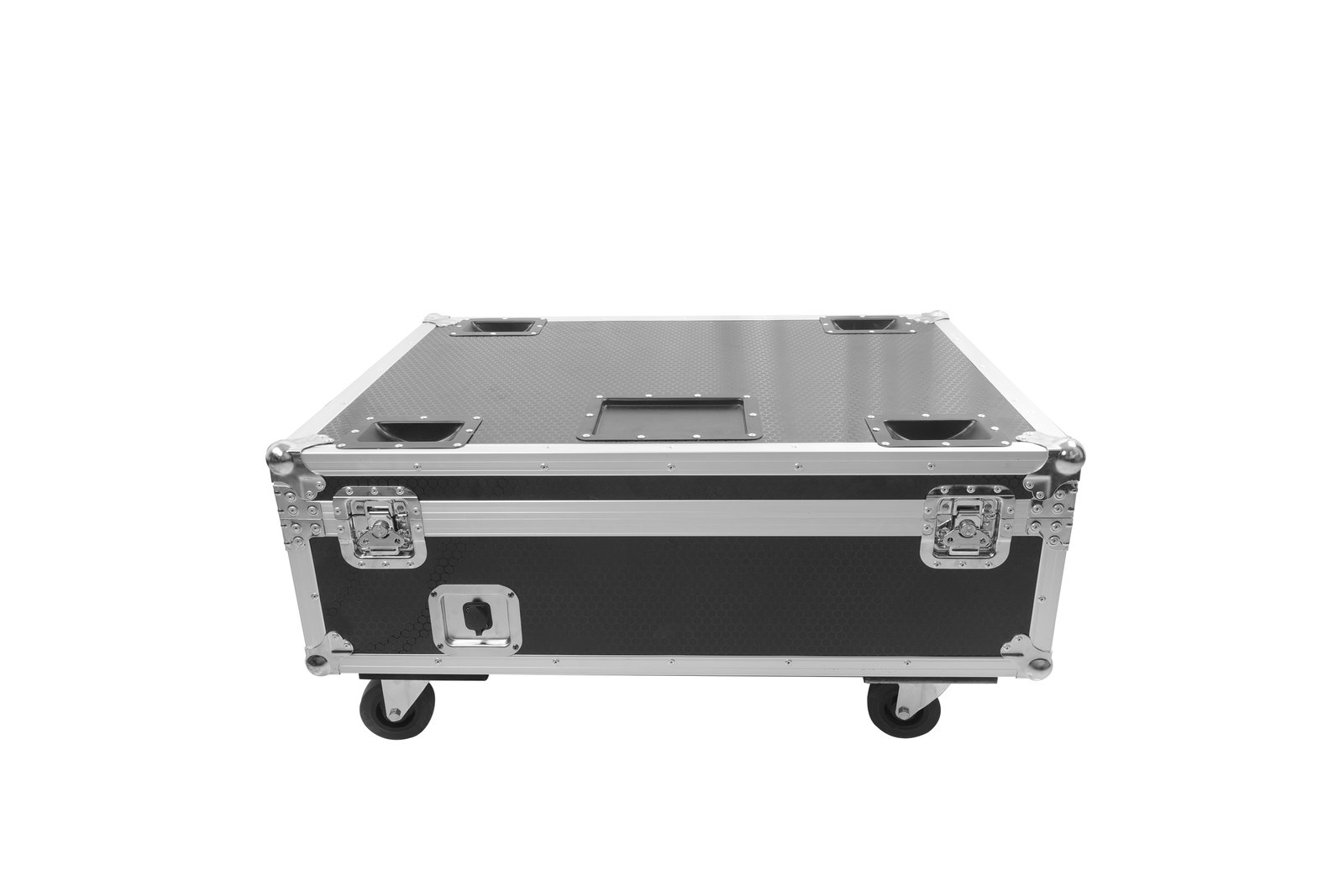

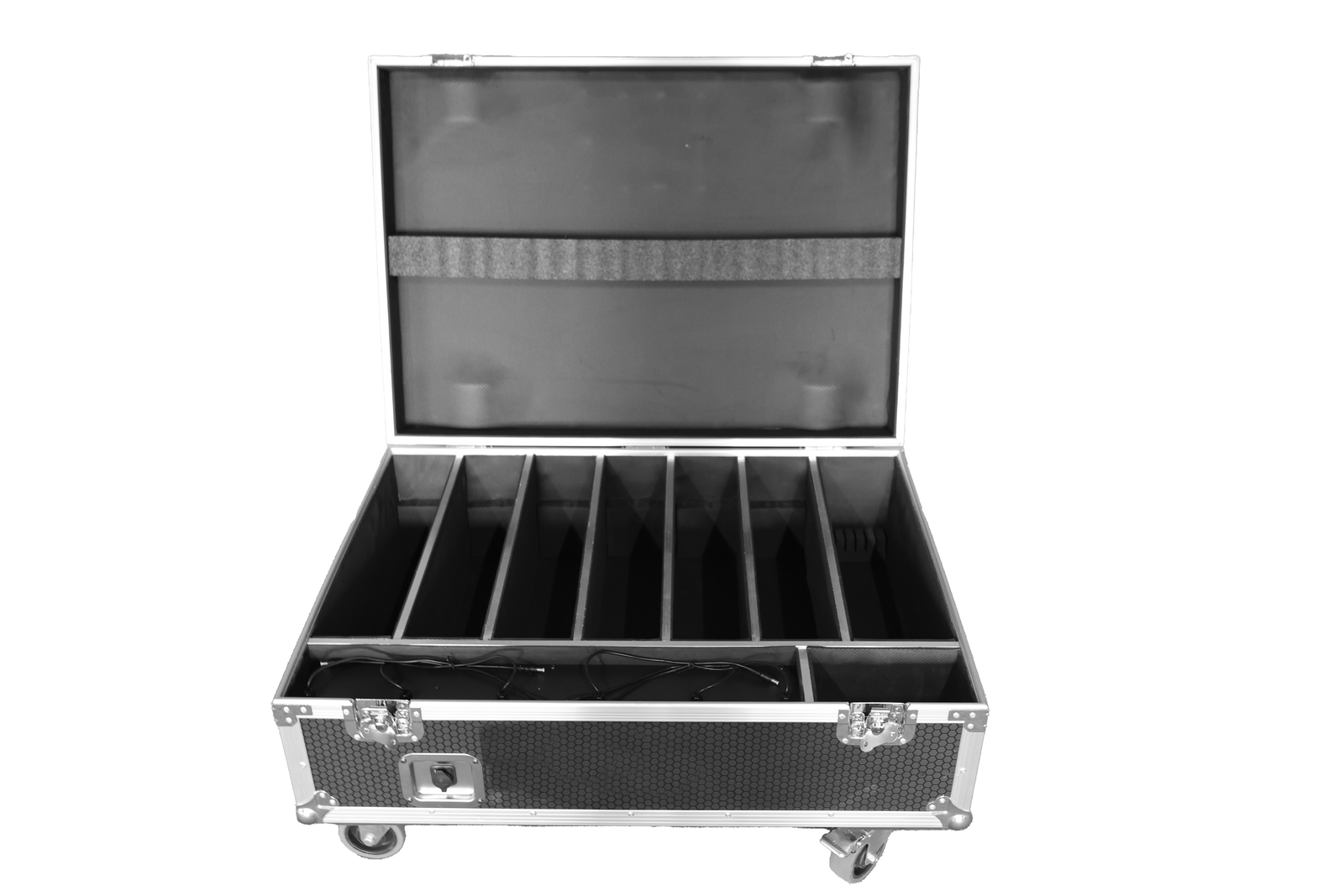

Transport case shown for reference. Confirm packing and included accessories when ordering.
LINEA 500
0.5 m battery pixel bar
Eight RGBW pixels in a 500 mm bar, with a rechargeable battery, IP65 protection and wireless DMX configuration options for event lighting.
- 8 × 10 W RGBW LEDs with 20° standard lenses
- 16-bit dimming and 51 preset colour macros
- DMX512 / RDM and 2.4 GHz remote control
- LumenRadio or alternative wireless DMX configuration
LINEA 500 / TECHNICAL DATA
Technical specifications
Light source & optics
- LEDs
- 8 × 10 W RGBW 4-in-1 LEDs
- Pixel control
- 8 pixels
- Standard lens
- 20°
- Optional lenses
- 30°–45°
- Slide filter angles
- 15°, 25°, 45° and 60° × 10°
- White colour selection
- 3000–10000 K
Battery & power
- Battery type
- Rechargeable lithium battery
- Charge time
- 5 hours
- Runtime settings
- 4 / 8 / 12 hours
- Colour-change / dimming runtime
- Up to 24 hours
- Power consumption
- 60 W
- AC supply
- 110–240 V AC, 50/60 Hz
- DC input
- 15 V DC
Control
- Protocols
- DMX512 / RDM
- Wireless DMX
- LumenRadio or alternative wireless DMX module, depending on configuration
- Remote control
- 2.4 GHz; stated range up to 80 m
- Run modes
- Static, master/slave and auto
Dimming & effects
- Dimmer
- 16-bit electronic dimming
- Dimming curves
- 4
- Colour macros
- 51 presets
- Built-in effects
- Colour mixing, colour chasing, strobe and fading
- Filter effect
- Rainbow effect with hard frost filter
Programming & display
- Programs
- 10 internal programs and 10 custom programs
- Temperature management
- Smart temperature control
- Operating record
- Working-time recording

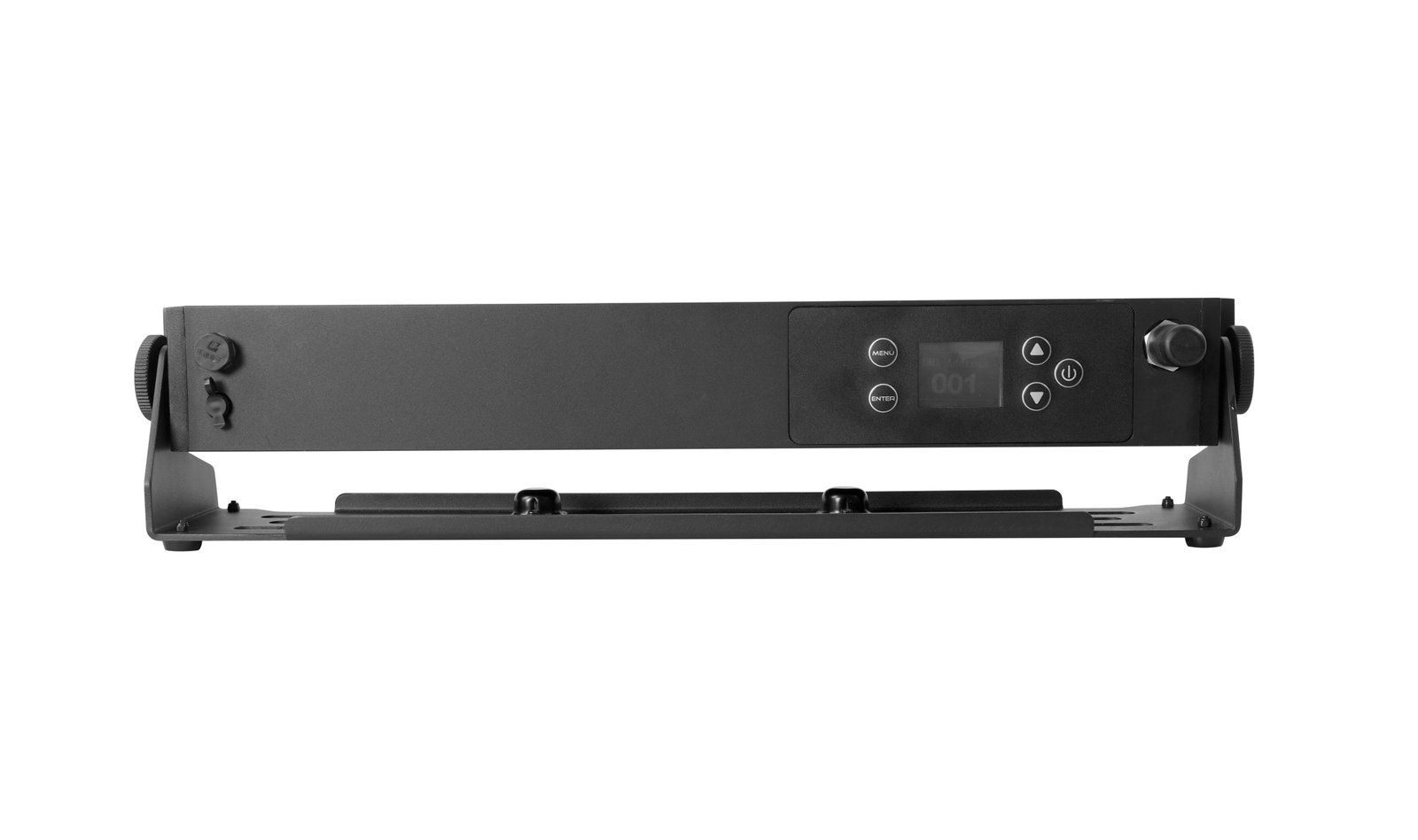

- Display
- TFT display with four menu buttons
Physical & protection
- Length
- 500 mm / 0.5 m
- Dimensions
- 500 × 65 × 113.5 mm
- Body
- Aluminium
- Net weight
- 4 kg
- IP rating
- IP65
Configuration and ordering
The 4-, 8- and 12-hour settings are operating profiles. Actual runtime depends on brightness and programme; the 24-hour figure applies to colour-change and dimming operation. Confirm the wireless DMX module, lenses, filters, packing and included accessories for your order.
Product questions
What should I include in a quotation request?
Send the required quantity, destination, project date, control requirements and packing options for LINEA 500.
Where can I find the technical data?
The specifications below list the published electrical, optical, control and installation details. Contact the team for configuration-specific requirements.
LINEA 500 pricing and availability
Send quantity, destination, delivery date and configuration requirements.
